Low Cost 200mV LCD Voltmeter (Pack of Ten) - V 125

Product Description
$427.90
Maximum quantity available reached.
Sku: V 125
Out of stock, you can still order, item will leave our store in the next 2-3 weeks.

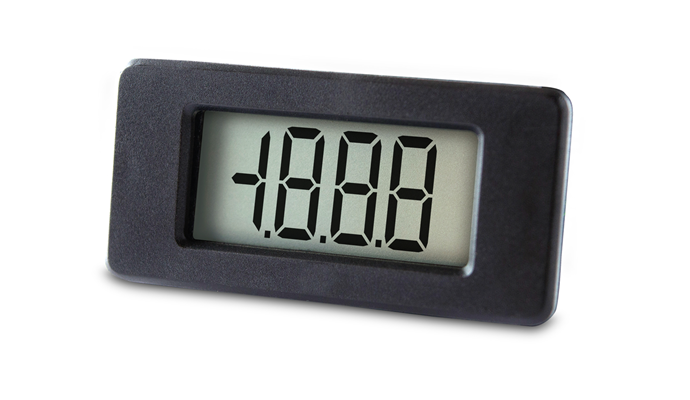

This exceptionally low cost panel meter features a 3½ digit LCD with 12.5mm (0.5") digit height. With 200mV full scale reading, auto-zero, auto-polarity and user selectable decimal points, this meter can be panel mounted using the snap-in bezel supplied.

Each unit of order contains 10 voltmeters.

Features:

- 3½ Digit LCD Voltmeter
- 200mV Full Scale Reading
- 8 Pin DIL Connection
- Bezel Mounted
- Very Low Cost

Specifications:

- Accuracy (overall error): 0.25 %(±3 count)
- Linearity (0-1000 reading): ±3 count
- Linearity (0-2000 reading): ±5 count
- Sample rate: 3 samples/sec
- Operating temperature range: 0 to 50 °C
- Temperature stability: 300 ppm/°C
- Supply Voltage (V+ to V-): 7 to 12 V d.c.
- Supply Current: 1 to 2 mA

Applications:

- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Low Power Voltage Measurement
