Compact 4-20mA Loop Powered LCD Meter - DPM 342

Product Description
$161.70
Maximum quantity available reached.
Sku: DPM 342
Out of stock, you can still order, item will leave our store in the next 2-3 weeks.

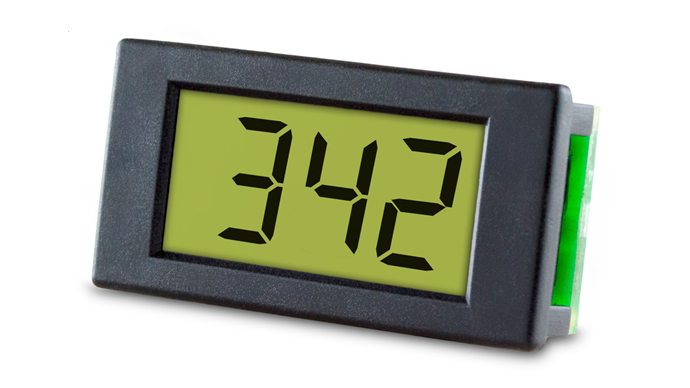

This compact, 4-20mA loop powered panel meter features a 3½ digit LCD with 11mm (0.43") digit height, LED backlighting and one-piece snap-in housing. Calibration is by two multi-turn potentiometers and connection to the current loop is via two screw terminals.

Specifications:

- Accuracy (overall error): 0.05 % (min.) ±1 coun
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 3 samples/sec
- Loop Volt: Drop 5 to 6 V
- Measurement Current: 4-20mA

Applications:

- Precision Instrumentation Systems
- 4-20mA Loop Monitoring
- Panel-Mount Indication
- Low Power Voltage Measurement
- Process Control & Automation
