LCD Voltmeter with Single-Hole Mounting - EMV 1125

Product Description
$100.10
Maximum quantity available reached.
Sku: EMV 1125
Out of stock, you can still order, item will leave our store in the next 2-3 weeks.

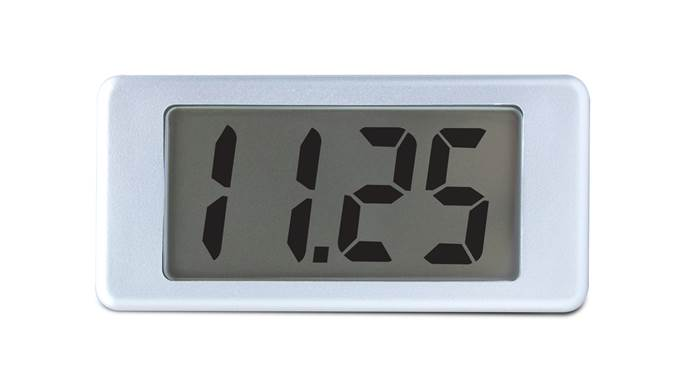

This panel meter features a 3½ digit LCD with 12.5mm (0.5") digit height and a 200mV d.c. full scale reading. Fitted with a threaded stud which allows mounting of the product through a 5.5mm (7/32”) drill hole, this unique enclosure provides quick and easy mounting.

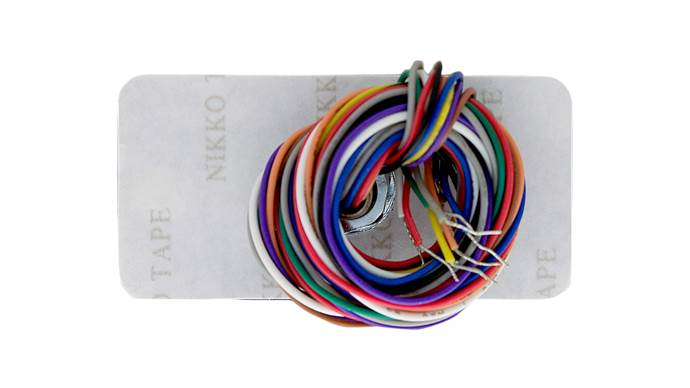

A rubber seal provides splashproof protection when fitted between the meter and mounting panel. Connection is via wires or via the T/BLK-4 screw terminal board.

Specifications:

- Range: 200 mV d.c.
- Accuracy (overall error): 0.05% (±1 count)
- Operating temperature: 0 to 50°C (32 to 122°F)
- Sample rate: 3 samples/sec
- Supply Voltage: 7.5 to 15 V d.c.
- Supply Current: 150 μA

Applications:

- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
