4-20mA Loop Powered LCD Meter with LED Backlighting - DPM 742-BL

Product Description
$159.50
Maximum quantity available reached.
Sku: DPM 742-BL
Out of stock, you can still order, item will leave our store in the next 2-3 weeks.

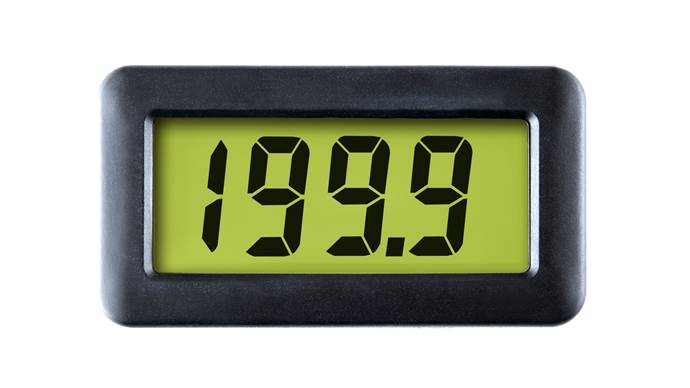

This 4-20mA loop powered panel meter features a 3½ digit LCD with 12.7mm (0.5") digit height and LED backlighting. Calibration is by two multi-turn potentiometers and connection to the current loop is via two screw terminals.

Specifications:

- Accuracy (overall error): 0.05% (typ.) ±1 count
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 2.5 samples/sec
- Loop Volt Drop: 5 to 5.6 V
- Measurement Current: 4-20mA

Applications:

- Precision Instrumentation Systems
- 4-20mA Loop Monitoring
- Panel-Mount Indication
- Low Power Voltage Measurement
- Process Control & Automation
